Fig. 1

From: Long bone fracture reduction and deformity correction using the hexapod external fixator with a new method: a feasible study and preliminary results

Fig. 1

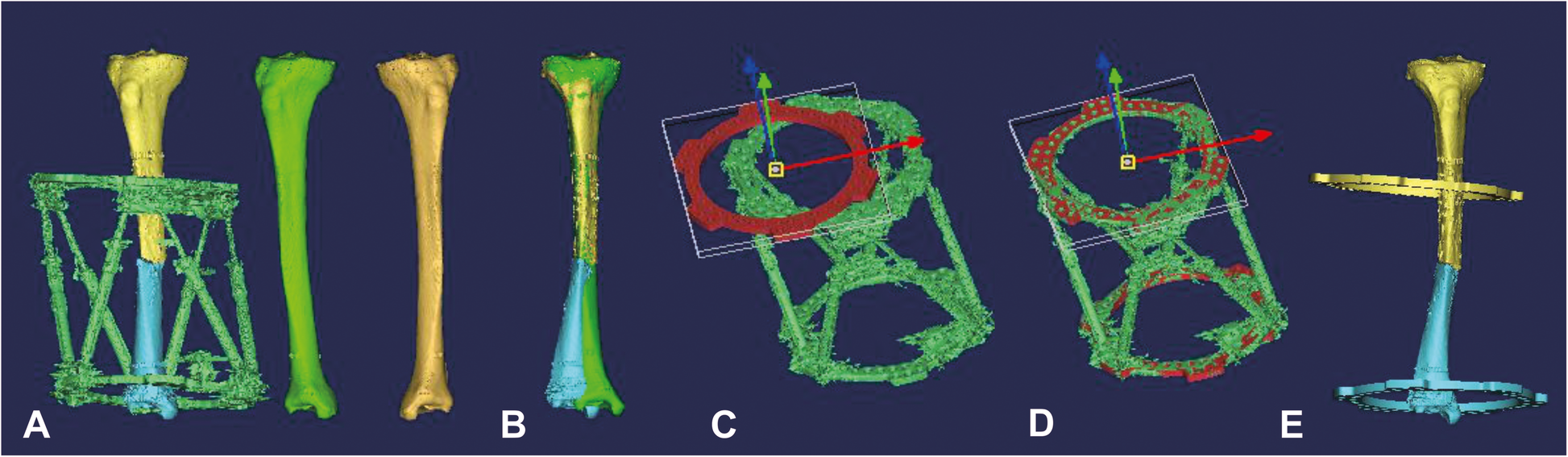

3D reconstruction and registration of the whole model. a 3D reconstruction of the bilateral tibia and the TSF. The green tibia is the mirror of the contralateral tibia. b Registration of the proximal bony fragment and mirrored image of the contralateral tibia. c, d Registration of the standard ring and the 3D model of the actual ring. e Merge of the bony fragment and the corresponding ring
